Easy and productive

Printhead sizes from 17.5 to 70 mm are available to provide high resolution graphics, barcodes and alphanumeric codes at class leading speeds.

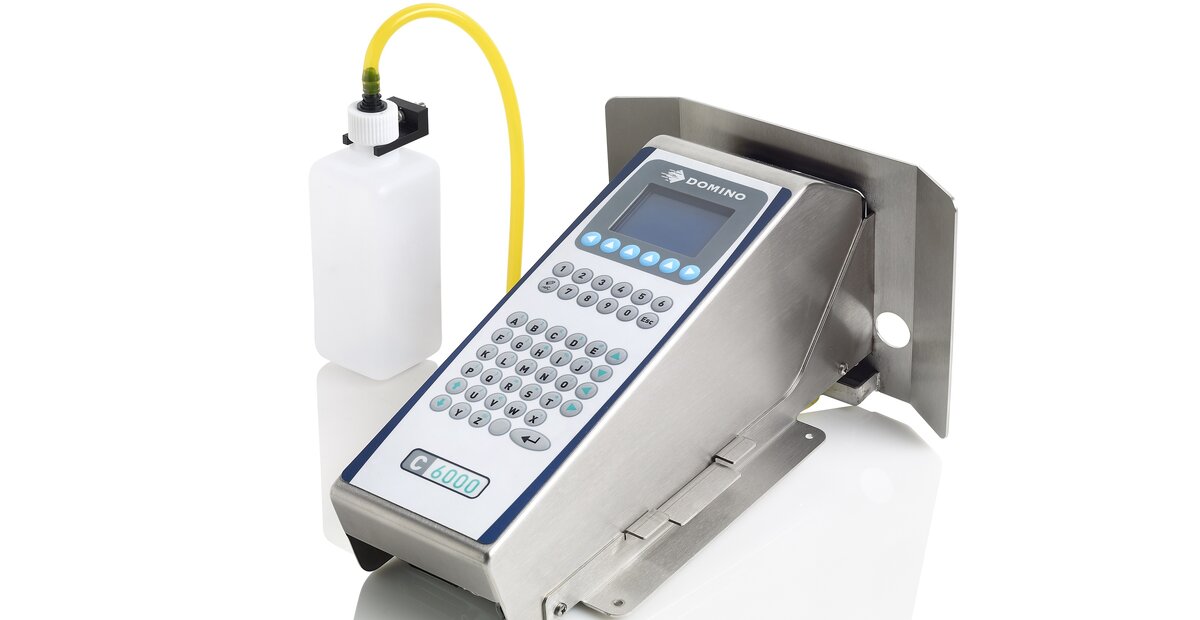

With the remote option up to 4 print heads can be run from one centralised ink supply and inks can be replenished in a safe and convenient location away from print heads and moving items. An industry leading 2l large ink system and economical ink consumption minimise consumable changes; additionally bottles can be replenished while the production line is running. At 33W and no factory air required, the C-Series is also a cost effective solution. For factory integration and automation the C-Series can be installed on networks with centralised management control. Message design is convenient with our class leading QuickDesign software, which also enables compliancy to European food labeling regulations.

The print head of the C-Series uses "Drop On Demand (DOD)" technology. This technology combined with Domino inks guarantees high-definition printing and excellent contrasts. At speeds up to 54 m/min a resolution of at least 200 dpi is achieved producing high contrast print logos and graphics directly onto cartons, as well as excellent quality barcodes. At high speed - 144 m/min - you are assured of high-performance product identification. Domino has developed class leading inks for high contrast, food packaging safety and reduced carbon footprint, including mineral oil free ink and a variety of colour options.

Variants:

• C1000+Maximum print height 17.5 mm,
• C3000+Maximum print height 35 mm,
• C6000+Maximum print height 70 mm.

Key benefits:

• Printing on demand onto outer cases including texts, logos, barcodes and last stage personalisation,
• Easy message creation with QuickDesign software,
• Intuitive control at line side and automated remote control options,
• GS1 compliant supply chain solutions,
• Robust, compact design and stainless steel construction for optimal lifetime,
• Unique ink system.
